230 - Multiband Audio Processor

THIS PRODUCT IS NO LONGER IN PRODUCTION

The Inovonics 230 is a broadcast audio processor for both AM and FM service, designed specifically to enhance perceived signal loudness and thus extend the effective area of station coverage.

Features


  • Gated 8-band Compressor

  • Independent Frequency-Selective Limiter circuitry (FM).

  • Phase Follower (AM)

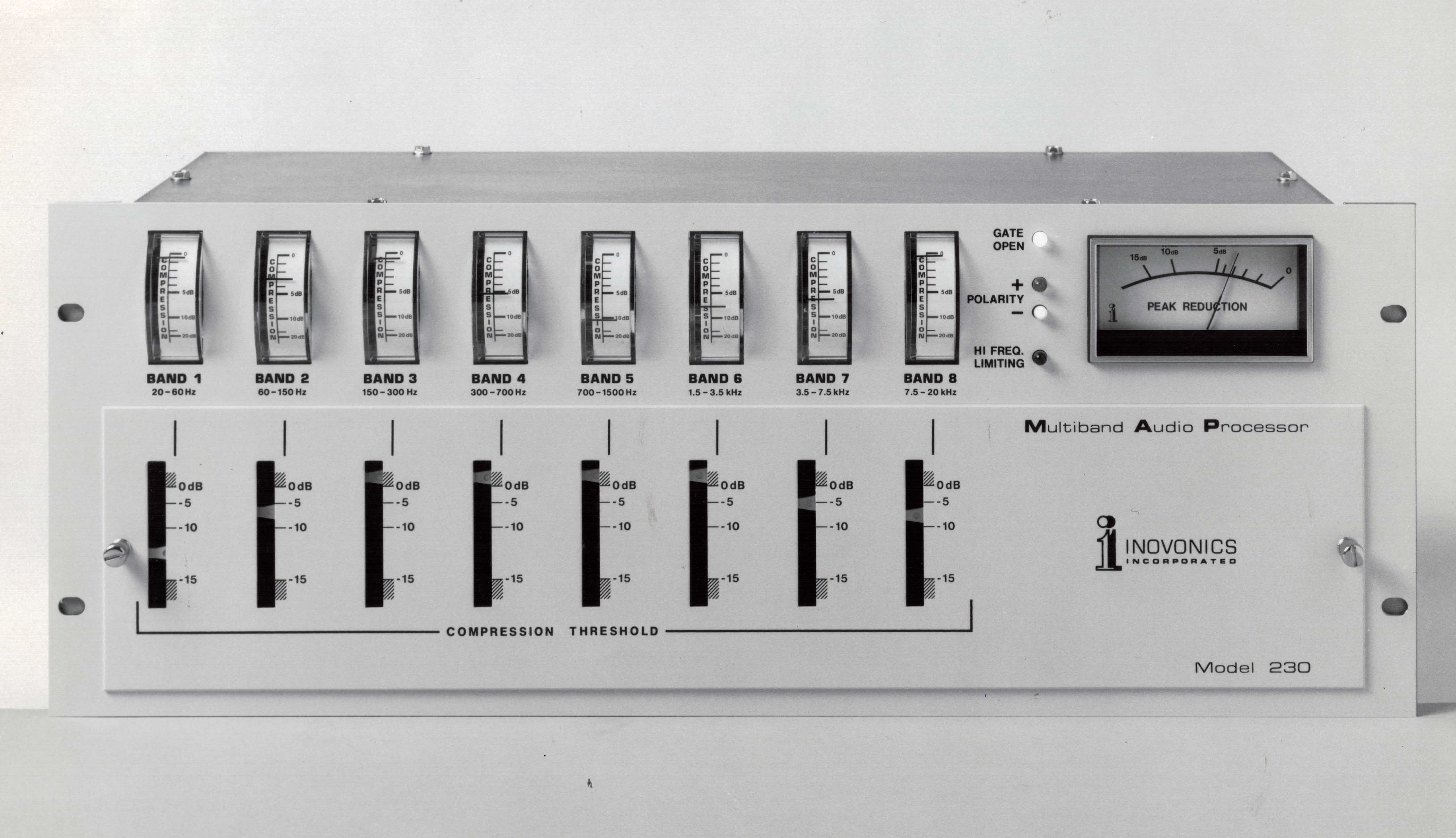

Product Image

Specifications


Frequency Response (below Compressor threshold)

±1 dB, 50Hz-20kHz

Noise Level

Better than 65dB below 100% modulation

Distortion

<1% THD for any degree of compression and limiting of steady-state signals 20Hz - 20kHz.

Input

Balanced-bridging; accepts program levels between -20 and +10dBm.

Output

Balanced output feeds 600-ohm lines or terminating inputs at levels between 0 and +20dBm, corresponding to 100% modulation.

Stereo Interconnection

Two units may be interconnected by means of an accessory cable to duplicate compression on a band-for-band basis.

Power Requirements

105 - 130 VAC (230V available), 50/60Hz: 1/2A

Size and Weight

7 x 19 x 9”, 16 lbs.
