Broadcast Audio Processor

Model 215

Broadcast Audio Processor

Share on Facebook Share on Twitter

THIS PRODUCT IS NO LONGER IN PRODUCTION.

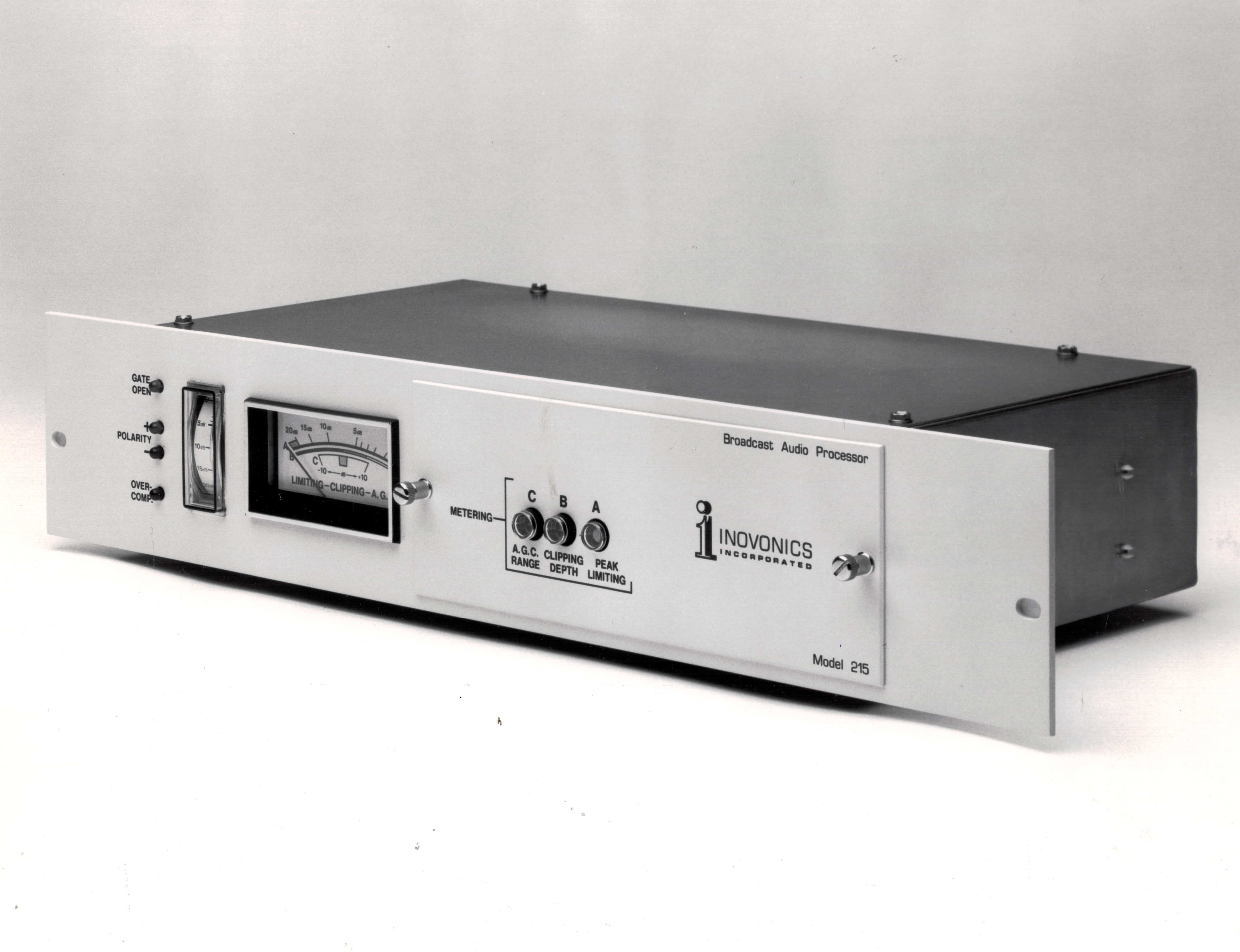

The Inovonics 215 is a broadband audio processor primarily intended for AM, FM and TV Broadcast use, although certain features make it attractive for sound re-enforcement and some studio recording situations.

Features

Specifications

Documentation

Features

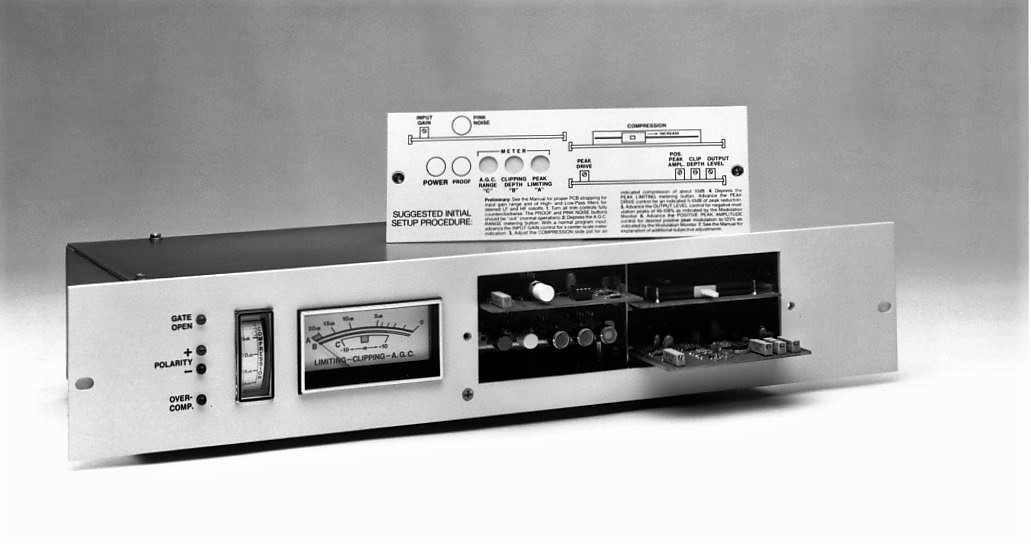

  • Plug-in options provide gated, gain-riding A.G.C, average level compression and peak control with phase-optimization and asymmetrical operation for AM broadcast.

placeholder

Specifications


Frequency Response

±1 dB, 50Hz-15kHz

Distortion

with 10dB Compression and 10dB Limiting-only): <0.3% THD above 200Hz, <1.0% THD at 50Hz.

Noise

Better than 60dB below 100% modulation.

Input

Balanced, -30 to +10dBm

Output

Balanced, 0 to +20dBm output clipping level

Power Requirements

105-130 VAC (230V available), 50/60Hz, 20W

Size and Weight

3 1/2” x 19” x 9”; 8 lbs.

Documentation


215 Manual
