INOmini RDS Sign Driver/Receiver

Model 402

UPC: 850025677240

RDS Sign Driver/Receiver

Share on Facebook Share on Twitter

THIS PRODUCT IS NO LONGER IN PRODUCTION.

Ever wondered what's going on with your RDS messaging and hate running out to the car to check? The INOmini 402 is a small form factor RDS Message sign driver and receiver. It tunes the FM full band, taking a station's now playing RDS text and sends it to a wide variety of large format scrolling "marquee" style signs for display. This conveniently provides for large, continuous, and clear RDS verification of now playing info at station studios, control rooms and external billboards.

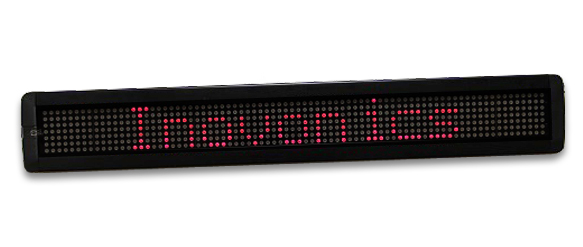

* sign pictured sold separately

Features

Specifications

Documentation

Features


  • Displays and exports PS (Program Service) and RT (Radio Text) messages

  • Supports most popular LED sign formats

  • Tunes from 64MHz - 108MHz in 100kHz steps

  • Provides support for color and font choosers

  • Front panel display of RDS presence, Signal Strength, PI Code, RT, PS and more

placeholder

Specifications


Tuning Range

64.0MHz – 108.0MHz in 100kHz steps

Receiver Sensitivity

10μV for a solid text display

Antenna Input

75-ohm (‘F’ connector) input can accept the downlead from rooftop antenna, a simple twinlead dipole or a random wire, depending on signal strength and reception conditions.

LED Sign Output

Male and female DB9 serial data connectors; communication baud rate is set automatically when the sign type is selected.

Sign Protocols Supported

Inovonics-supplied; NEOPlex Technology; Alpha

Fonts and Colors

Options are selected via the 402 menus, consistent with capabilities of the sign used.

402 Power Requirements

12VDC at 125mA. A ‘bricktype’ (inline) switchmode power supply appropriate to the destination AC mains voltage is provided.

Mounting Options

An optional rack adapter accepts up to three INOmini modules in a 1U, 19-inch rack space, or the 402 may easily be fastened to any convenient surface with two small screws.

Size and Weight

1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight

Environmental

Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.

Documentation


402 Manual

402 Data Sheet

402 Manual (Spanish)
