Features

• Monitor AM broadcasts from any remote point

• Full dynamic browser support of all operating features, including audio streaming, through the dynamic Web Interface

• Monitor both off-air radio and Aux audio levels simultaneously with meters.

• StationRotation™ - monitor all station presets by ‘round robin’ sequencing, each with its specific alarm parameters. Select which presets to include in StationRotation.

• BandScanner™ shows a spectrum plot of all or part of the AM Broadcast band.

• Sends instant error messages via email or SMS text; logs signal and audio loss

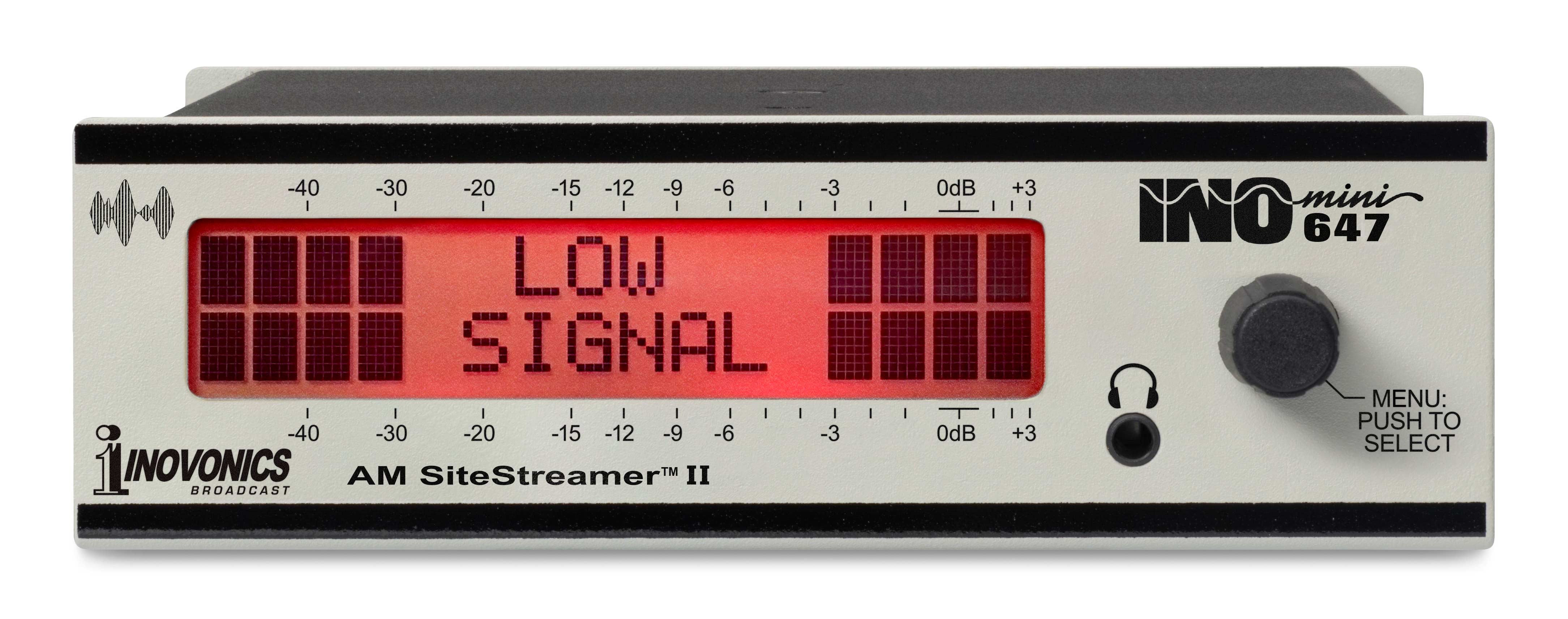

• Flashing-red front-panel alarms and rear-panel ‘tallies’ indicate Carrier Loss and Audio Program Loss.

• Password protection with two access levels.

• Remote firmware updates.

• User Manual is available on the Web interface.

Specifications

Tuning Range

520kHz to 1710Hz in 10kHz steps or 531kHz to 1611kHz in 9kHz steps

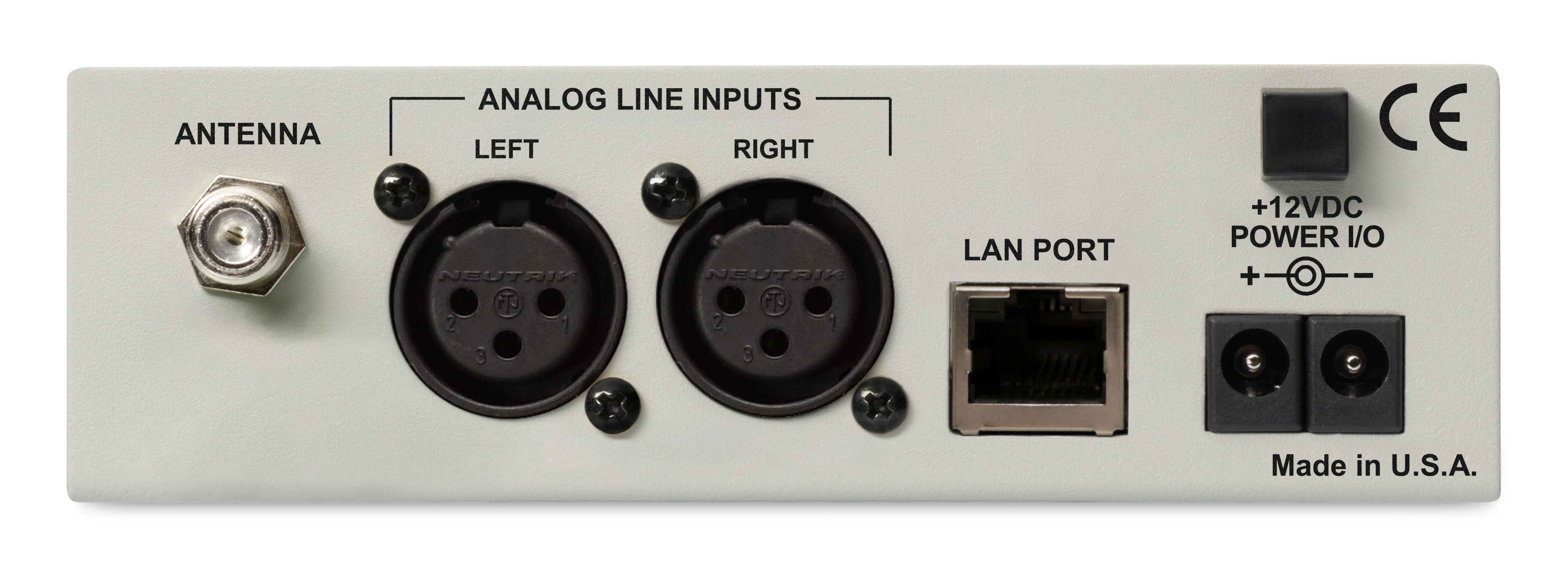

Antenna Input

Isolated F connector accepts a passive outdoor loop antenna (not included, optionally available)

Receiver Sensitivity

≤100μV for 40dB SNR with 6kHz BW

Audio Response

Selectable (–6dB): 6kHz, 4kHz, 3kHz, 2kHz

Program Line Input

Active-balanced (XLR) stereo left/right or dual-monaural analog AUX inputs with menu-selectable +4dBu or –10dBu nominal reference levels. Local and remote switching between off-air and AUX line-in feeds.

Headphone Jack

Front-panel (TRS) 3.5mm

Network Connection

LAN (RJ45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet

Alarms

Low Signal and Audio Loss

Power Requirement

12VDC at 110mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included. A low-noise linear supply is optionally available as required in certain circumstances.

Mounting Options

An optional rack adapter mounts one, two or three INOmini format units in a standard 19-inch, 1U rack space.

Size and Weight

1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight

Environmental

Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
