AM SiteStreamer™

Share on Facebook Share on Twitter

The INOmini 637 SiteStreamer™ is a Web-enabled medium-wave AM broadcast receiver for remote signal monitoring. Installed at a broadcast transmitter site, or at any remote location with an Internet connection, the unit streams audio from single or multiple (sequenced) off-air sources, or from a hard-wired program audio feed, back to any computer, tablet or mobile device.

The browser-accessed Web Interface enables remote tuning and source switching, displays audio levels, and allows setup and display of alarm logs. The SiteStreamer™ also dispatches instant email or text message alarm notifications selectively to multiple personnel.

The Station Rotation™ feature permits monitoring of station presets by ‘round robin’ sequencing of up to 30 stations - each with its specific alarm parameters.

Features


  • Monitor AM broadcasts from any remote point

  • BandScanner™ shows a spectrum plot of all or part of the AM Broadcast band.

  • ‘Station Rotation’ can monitor multiple station presets by ‘round robin’ sequencing, each with its specific alarm parameters.

  • AES digital AUX input can monitor hardwired audio program feeds (A/B between source and air).

  • Full dynamic browser support of all operating features, including audio streaming, through the dynamic Web Interface

  • Sends instant error messages via email or SMS text; logs signal and audio loss

  • Easy setup and operation; full SNMP support

  • Email/SMS error messaging; SNMP support

  • Headphone jack


  Online Demo Available

Specifications


Tuning Range

520kHz to 1710Hz in 10kHz steps or 531kHz to 1611kHz in 9kHz steps

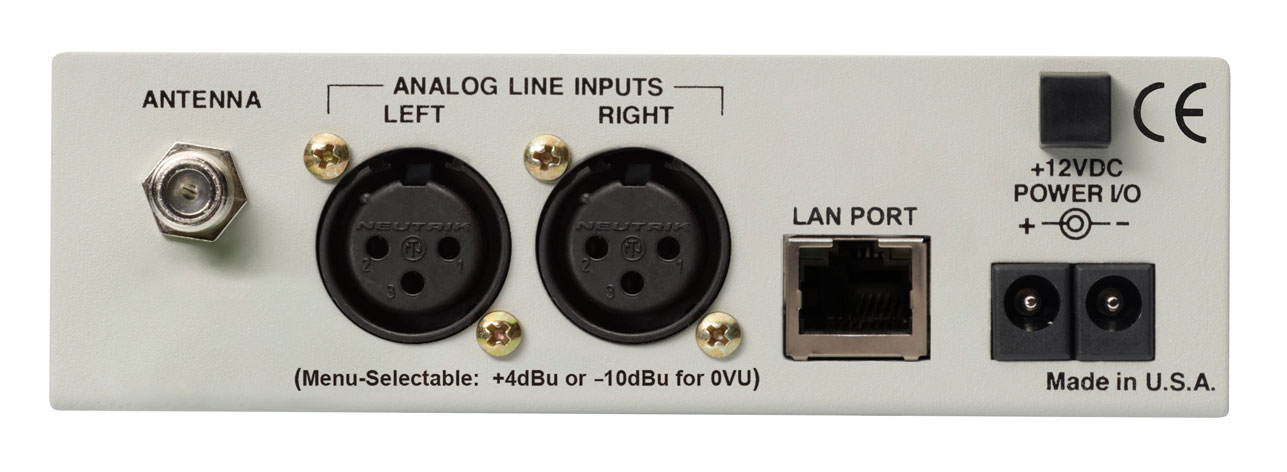

Antenna Input

Isolated F connector accepts a passive outdoor loop antenna (not included, optionally available)

Receiver Sensitivity

≤100μV for 40dB SNR with 6kHz BW

Audio Response

Selectable (–6dB): 6kHz, 4kHz, 3kHz, 2kHz

Program Line Input

Active-balanced (XLR) stereo left/right or dual-monaural analog AUX inputs with menu-selectable +4dBu or –10dBu nominal reference levels. Local and remote switching between off-air and AUX line-in feeds.

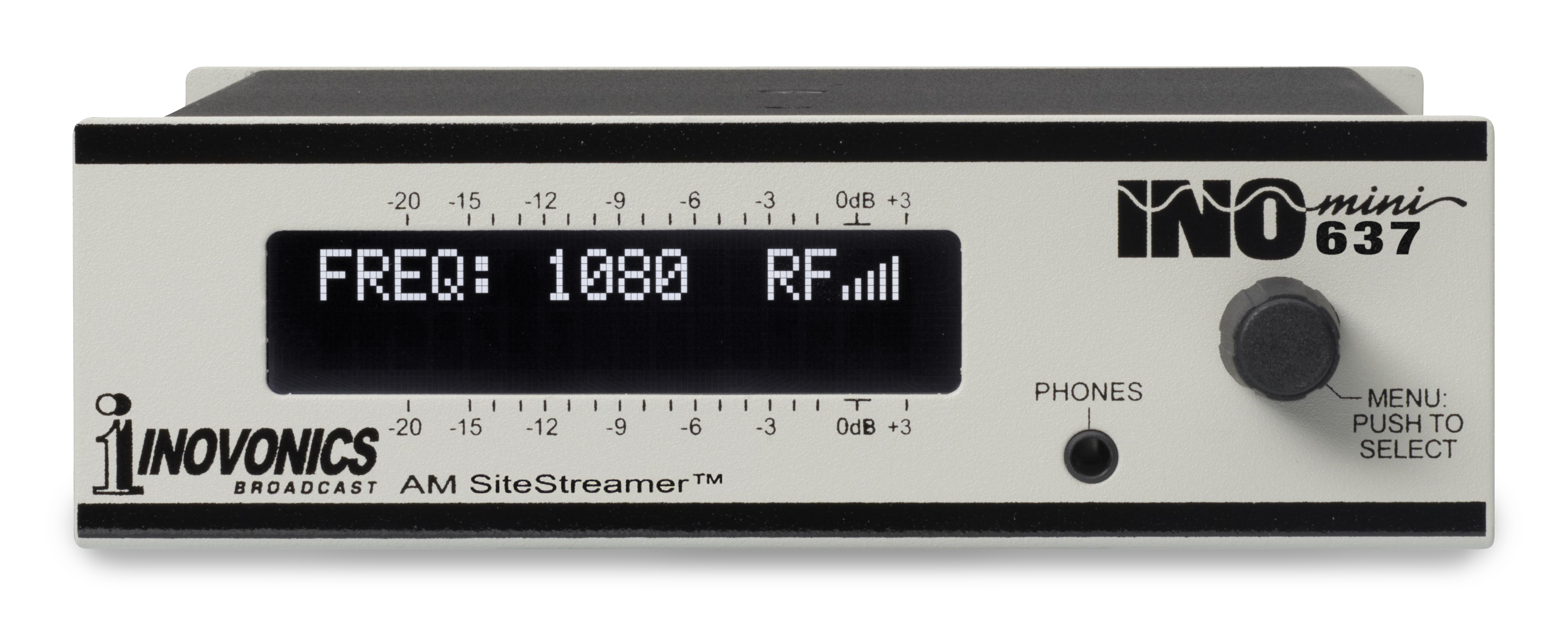

Headphone Jack

Front-panel (TRS) 3.5mm

Network Connection

LAN (RJ45) jack accepts universal TCP/ IP connection to Local Area Network, and via router to the Internet

Alarms

Low Signal and Audio Loss

Power Requirement

12VDC at 110mA (2.1mm x 5.5mm coaxial); inline switchmode power supply included. A low-noise linear supply is optionally available as required in certain circumstances.

Mounting Options

An optional rack adapter mounts one, two or three INOmini format units in a standard 19-inch, 1U rack space.

Size and Weight

1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight

Environmental

Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity, non-condensing, altitudes to 10,000ft/3,048m.
